Built for High Performance

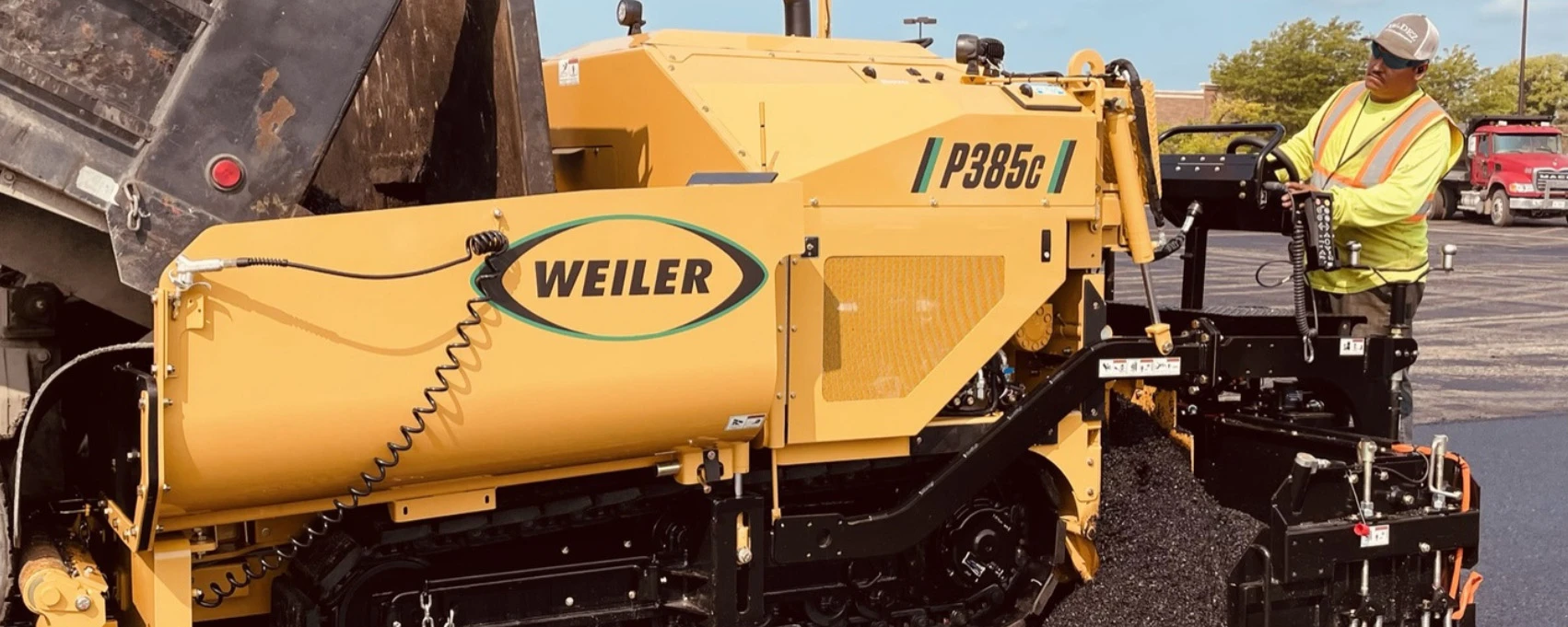

Engineered and built to exceed the demands of commercial paving, the Weiler P385C incorporates proven designs with new innovations to provide performance, reliability and outstanding mat quality in a wide range of applications.
Proven Screed
The Weiler-designed 1678 kg screed delivers outstanding mat quality and a wide paving range. The 2.44m front mount screed is hydraulically extendable to 4.80 m.
Largest Undercarriage
Best-in-class 2286 mm track length with 1727 mm of ground contact and 140 mm track chain pitch provides a smooth ride and excellent flotation. Automatic track tensioning ensures performance and maximizes component life.
Visibility and Control
The P385C has three different operating positions allowing for optimal visibility while the adjustable, magnetic-resistance intelligent steering system allows for reliable control.
Durable Components
Highway class chains, conveyor and auger bearings provide long-term reliability. Remote grease lines located on the front of the counterweight provide easy daily maintenance.
Fast Service
Remote grease lines, spray down system with 7.6 m hose reel and 3m coiled hose, five engine access doors and Caterpillar dealer service and support keep your machine up and running.
Specifications | |||
Operating Weight | 9,979 kg | ||
Standard Paving Range | 2.4 - 4.8m | ||
Engine | Cat ® C3.6 Tier 4F/Stage V | ||
Horsepower | 90 kw | ||
Height | 1,930 mm | ||
Length | 4,470 mm | ||
Transportation Width | 2,591 mm | ||
Track Length End to End | 2,286 mm | ||
Truck Dump Width Inside | 2,997 mm | ||
Track To Ground Contact | 1,727 mm | ||
Track Pad Width | 356 mm | ||
Track Gauge | 1,880 mm | ||
Track Chain Pitch | 140 mm | ||
Track Rollers | 6 per side | ||
Track Carrier Rollers | 1 per side | ||
DEF Tank Capacity | 18 L | ||
Fuel Capacity | 151 L | ||
Hydraulic Oil Capacity | 114 L | ||
Spray Down Tank Capacity | 30 L | ||
Truck Clearance | 482 mm | ||
Hopper Capacity | 8.1 mt | ||
Augers | 305 mm | ||
Screed Weight | 1,678 kg | ||
Main Screed Plate | 9 x 419 mm Hardox | ||
Extension Screed Plates | 9 x 203 mm Hardox | ||
Screed Width | 2.4 - 4.8 m | ||
Screed Crown Adjustment | +/- 3% | ||
Screed Heat | Electric w/ Thermostatic Control | ||
Vibration | 2 x 2,500 VPM | ||
Generator | 12 kW |
